Crystal oscillator

DIP 49S Passive crystal 20PPM 3.579545M 4M 4.096M 4.5M 4.9152M 6M 7.3728M 7.6M 8M 10M

DIP 49S Passive crystal 20PPM 3.579545M 4M 4.096M 4.5M 4.9152M 6M 7.3728M 7.6M 8M 10M

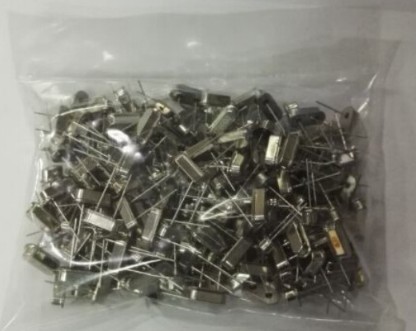

200pcs/bag
unit Price:0.031usd
MOQ：200pcs
Product description: DIP 49S Passive crystal oscillator 20PPM 3.579545M 4M 4.096M 4.5M 4.9152M 6M 7.3728M 7.6M 8M 10M 10.245M 11.0592M 12M 12.288M 13.56M 14.318M 16M 17.7344M 18M 18.432M 18.9375M 20M
INQUIRY

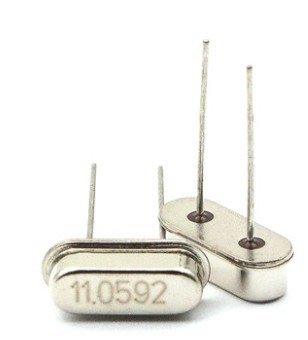

DIP 49S Passive crystal 20PPM

Frequency Values for choose :

3.579545M 4M 4.096M 4.5M 4.9152M 6M 7.3728M 7.6M

8M 10M 10.245M 11.0592M 12M 12.288M 13.56M 14.318M

16M 17.7344M 18M 18.432M 18.9375M 20M 20.480M 22.1184M

24M 25M 26M 26.601712M 27.145M 27M 40M 48M

参数：

盒型Hold type ：HC-49US
标称频Nominal frequency :3.2-90MHZ
调整频差Freq.tolerence：±20ppm （at -20℃-+70℃）
温度频差Freq.Tolerance:±20ppm （at -20℃-+70℃）
工作温度Operating Temp：-20℃-+70℃
振荡模式Oscillate Mode:基频FUNDMENTAL
静电容Shunt Capacitance :7pf Max
激励功率Drive Level:50UW
负载电容Load capacitance :12PF
老化率Aging in a year:3ppm
谐振电阻Rr:120ΩMax
绝缘电阻Ins.Resistance :500MΩ Min/DC 100V
