LAY50-16AF-11D, square RED push button switch, with LED light piercing 16mm, lock-free self-reset

Contact type: 1 normally open 1 normally closed,
Button LED light color: Red light,

LED indicator voltage: ACDC 220V

The lamp bead has a built-in protection resistor and does not require an external resistor.

Applications:
Buttons in power, medical, instrumentation, marine, industrial, printing, laboratory equipment,
Turn on, power gear adjustment and other functions.

The main technical parameters:

Working temperature: -25-55 ℃
Working humidity: 45-85% RH
Contact resistors:
Insulation resistors:> or = 100MΩ
Power frequency withstand voltage: AC 1890V 50HZ.1min
Mechanical life: 1,000,000 times for general buttons, 100,000 times for knobs, 50,000 times for emergency buttons
Electrical life: AC-15 100,000 times (1200 times / hour)
DC-13 50,000 times (1200 times / hour)
Head protection level: IP40 (with "TH" mark can work normally in hot and humid environment
Action stroke: 1.5-2.0mm

Rated working value
Rated insulation voltage Ui / 250V
Conventional emission current Ith: 5A
Use category: Rated working voltage Ue ：24V       110V      220V
AC-15 Rated working current Ie 2A         1A         0.5A
DC-13 Rated working voltage Ie 0.7A        0.2A       0.1A

Round / square head mounting opening size:

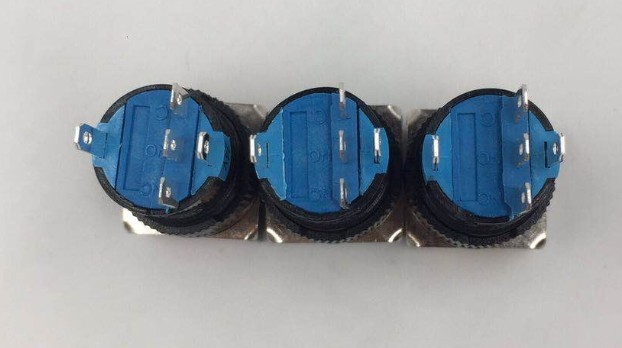

Contacts, one normally open, normally closed and wiring diagram

Dimensions:

More product selection types are as follows:

The working state of the button can choose one:lock-free self-reset / self-lock

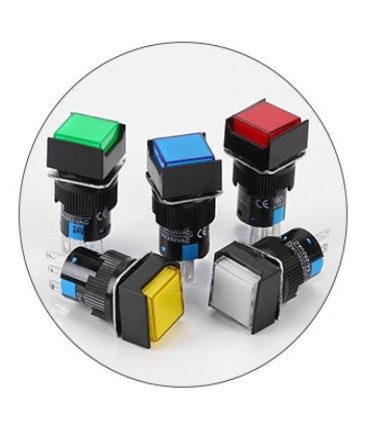

Button LED light color can choose one: red / green / yellow / white / blue

LED light can choose one of the indicated voltage:

ACDC6V, ACDC12V, ACDC24V, ACDC36V, ACDC48V, ACDC110V, ACDC127V, ACDC220V

You can choose one of the contact types:

• 1 normally open, 1 normally closed,

• 2 normally open, 2 normally closed

Product model and selection:
LAY50-16AF-11 button installation outer diameter 16mm, square head, no light, contacts are normally open and normally closed, self-resetting without lock
LAY50-16AF-22 button installation outer diameter 16mm, square head, no light, contact two normally open two normally closed, self reset without lock
LAY50-16AF-11T button installation outer diameter 16mm, square head, no light, contacts are normally open and normally closed, self-locking
LAY50-16AF-22T button installation outer diameter 16mm, square head, no light, contact two normally open two normally closed, self-locking
LAY50-16AF-11D button installation 16mm outer diameter, square head, with LED light, contacts are normally open and normally closed, self-resetting without lock
LAY50-16AF-22D button installation 16mm outer diameter, square head, with LED light, contact two normally open two normally closed, self-resetting without lock
LAY50-16AF-11TD button installation 16mm outer diameter, square head, with LED light, contacts are normally open and normally closed, self-locking
LAY50-16AF-22TD button installation outer diameter 16mm, square head, with LED light, contact two normally open two normally closed, self-locking
LAY50-16AY-11 button installation 16mm outer diameter, round head, no light, contacts are normally open and normally closed, self-resetting without lock
LAY50-16AY-22 button installation outer diameter 16mm, round head, no light, contact two normally open two normally closed, self-reset without lock
LAY50-16AY-11T button installation outer diameter 16mm, round head, no light, contacts are normally open and normally closed, self-locking
LAY50-16AY-22T button installation outer diameter 16mm, round head, no light, contact two normally open two normally closed, self-locking
LAY50-16AY-11D button installation 16mm outer diameter, round head, with LED light, contacts are normally open and normally closed, self-resetting without lock
LAY50-16AY-22D button installation 16mm outer diameter, round head, with LED light, contact two normally open and normally closed, self reset without lock
LAY50-16AY-11TD button is installed with 16mm outer diameter, round head, with LED light, contacts are normally open and normally closed, self-locking
LAY50-16AY-22TD button installation 16mm outer diameter, round head, with LED light, contact two normally open two normally closed, self-locking
LAY50-16AJ-11 button installation outer diameter 16mm, rectangular head, no light, contacts are normally open and normally closed, self-resetting without lock
LAY50-16AJ-22 button installation outer diameter 16mm, rectangular head, no light, contact two normally open and normally closed, self reset without lock
LAY50-16AJ-11T button installation outer diameter 16mm, rectangular head, no light, contacts are normally open and normally closed, self-locking
LAY50-16AJ-22T button installation outer diameter 16mm, rectangular head, no light, contact two normally open two normally closed, self-locking
LAY50-16AJ-11D button installation 16mm outer diameter, rectangular head, with LED light, contacts are always open and normally closed, self-resetting without lock
LAY50-16AJ-22D button installation 16mm outer diameter, rectangular head, with LED light, contact two normally open and normally closed, self reset without lock
LAY50-16AJ-11TD button installation 16mm outer diameter, rectangular head, with LED light, contacts are normally open and normally closed, self-locking
LAY50-16AJ-22TD button installation outer diameter 16mm, rectangular head, with LED light, contact two normally open two normally closed, self-locking


The customer needs to choose a light color. The LED light colors are:
Red / Green / Yellow / White / Blue / Black

The customer needs to choose an indicator voltage. The indicator voltages are:
ACDC: 6V / 12V / 24V / 36V / 48V / 110V / 127V / 220V
