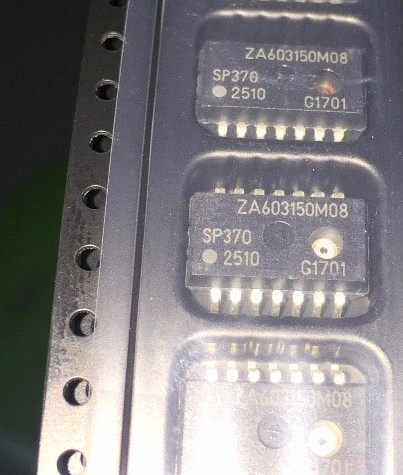

SP370-25-106-0,DSOp14 英飞凌原装新货 胎压传感器

The SP37 is a highly integrated device which performs all necessary functions for
a Tire Pressure Monitoring System (TPMS) wheel module suited for high-volume
applications. The device contains the sensing elements, the microcontroller, the
LF receiver, the RF transmitter and more in one package requiring only few external
components to complete a TPMS module.

Since 2003, more than 150 million TPMS sensors of our continuously improved
product generations were sold worldwide.

The sensor design of the SP37 is based upon Infineon’s patented bulk micromachined
sensing technology which allows highly reliable measurements in harsh
environments.

The SP37 measures pressure, radial acceleration, temperature and supply voltage.
The device is compliant to the RoHS standard, with a pressure range from
100 up to 450kPa.

Numerous embedded firmware functions and a development kit enable fast

development cycles.
