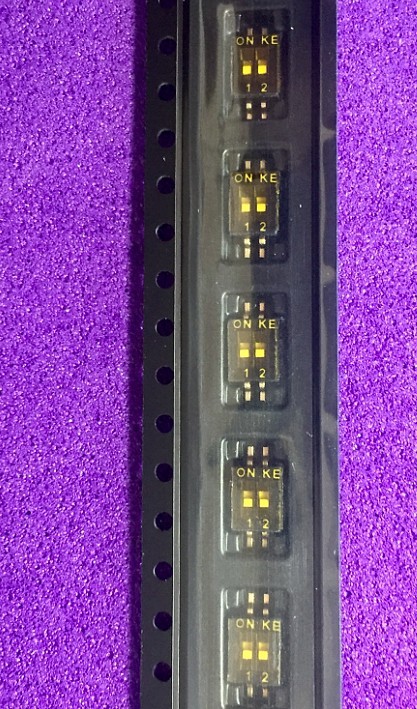

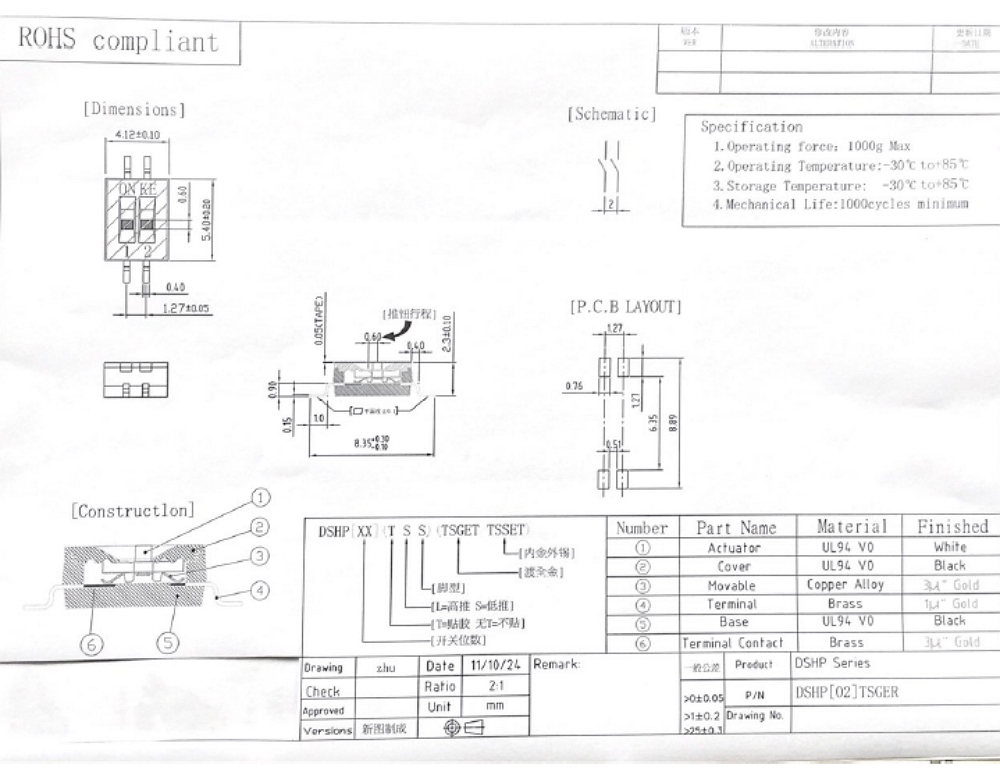

Slide Type SMT SMD Dip Switch, 1.27 mm Pitch 2 Row 4 Pin 2 Position

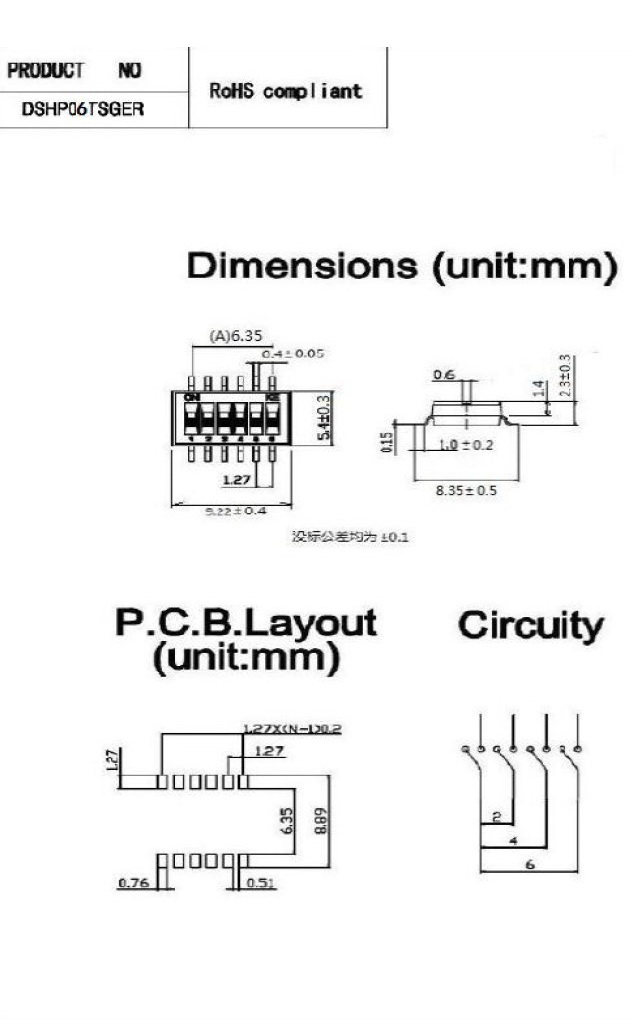

Product type: 2, 4, 6, 8, 10 positions DIP switch，

Product features: 1.27mm pitch; standard gold-plated contacts;

attached with high temperature resistant film;

high temperature resistant plastic body

Dip switch product performance:
1 Rated current: switching current 25mA, 24VDC
Do not switch current 100mA, 50VDC
2 contact resistance: initial value 50 milliohms
100 milliohms after life test
3 Insulation resistance: minimum 500 Mohm at 500VDC
4 Withstand voltage: 500VDC / one minute
5 Operating force: 1000gf
6 Life Test: 2000

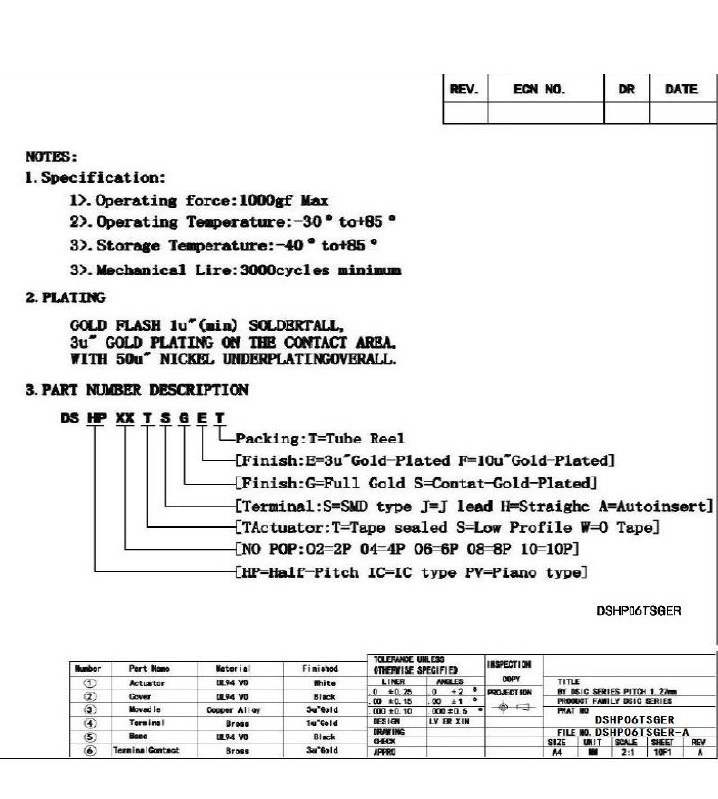

DIP switch material:
1 Upper cover and body: Engineering plastic UL94V-0 high temperature material, black
2 Push buttons: Engineering plastic UL94V-0 high temperature material, white
3 fixed contacts and movable contacts: copper plated gold;
4 pins: copper plated with gold;
5 Attached film: high temperature resistant film

DIP switch welding method:
1 Hand soldering: Below 30 watts: no more than three seconds below 350 degrees Celsius or no more than five seconds below 270 degrees Celsius.
2 Reflow soldering: within 265 ° C to 275 ° C within 10 seconds, please set the push button to the "OFF" position during soldering and cleaning.
