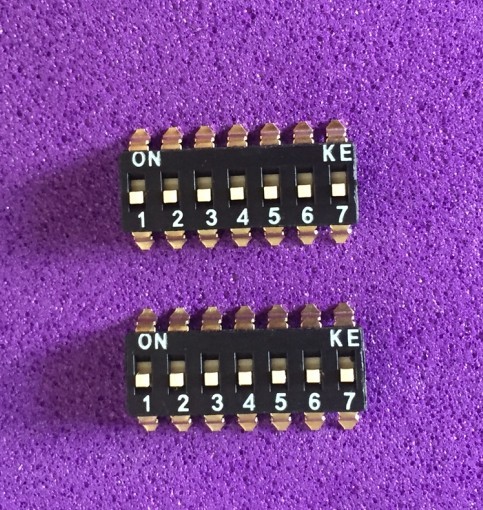

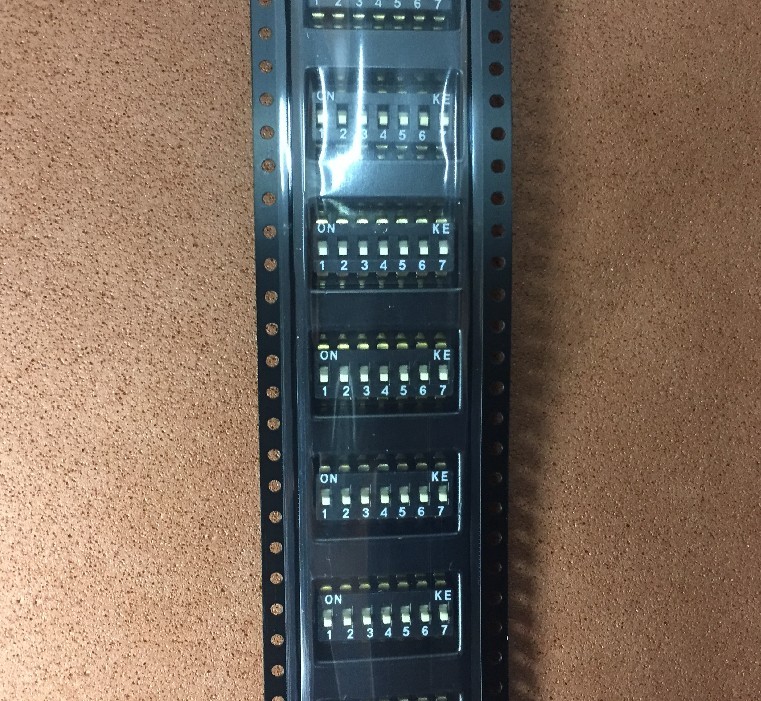

DSIC07LSGER

Slide Type SMT SMD Dip Switch, 2.54 mm Pitch 2 Row 14 Pin 7 Position

Model: DSIC07LSGER
Product Name: 2.54mm pitch DIP switches
Brand : KINGTEK

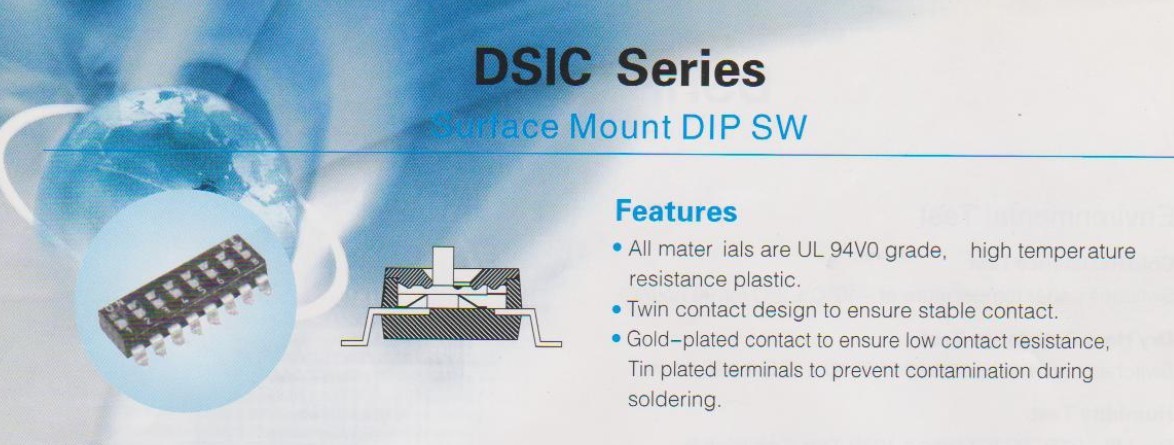

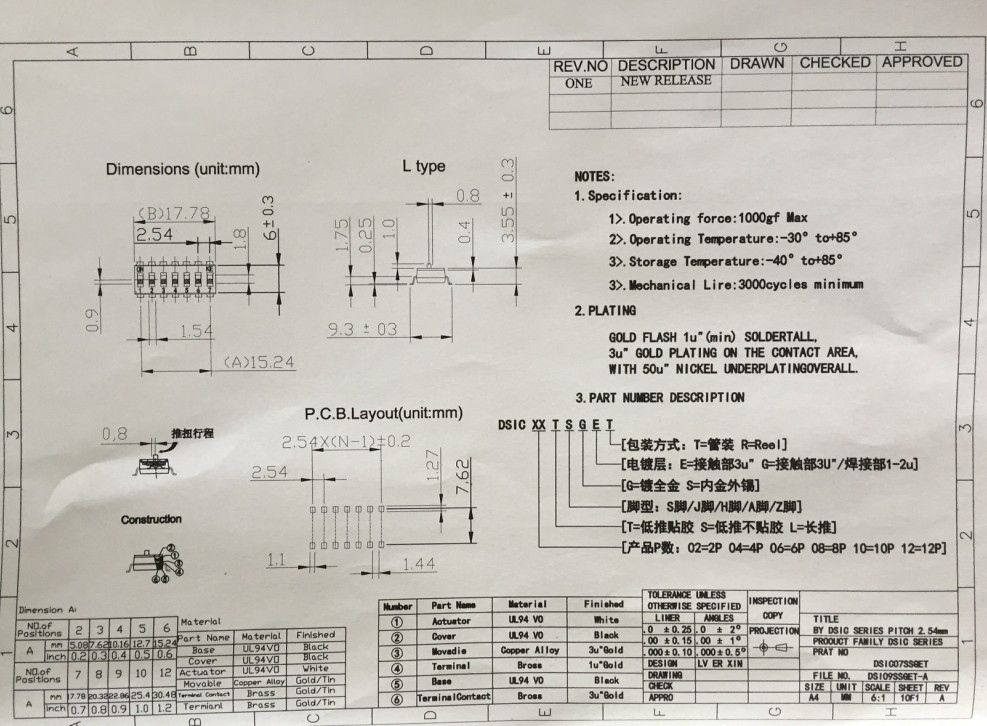

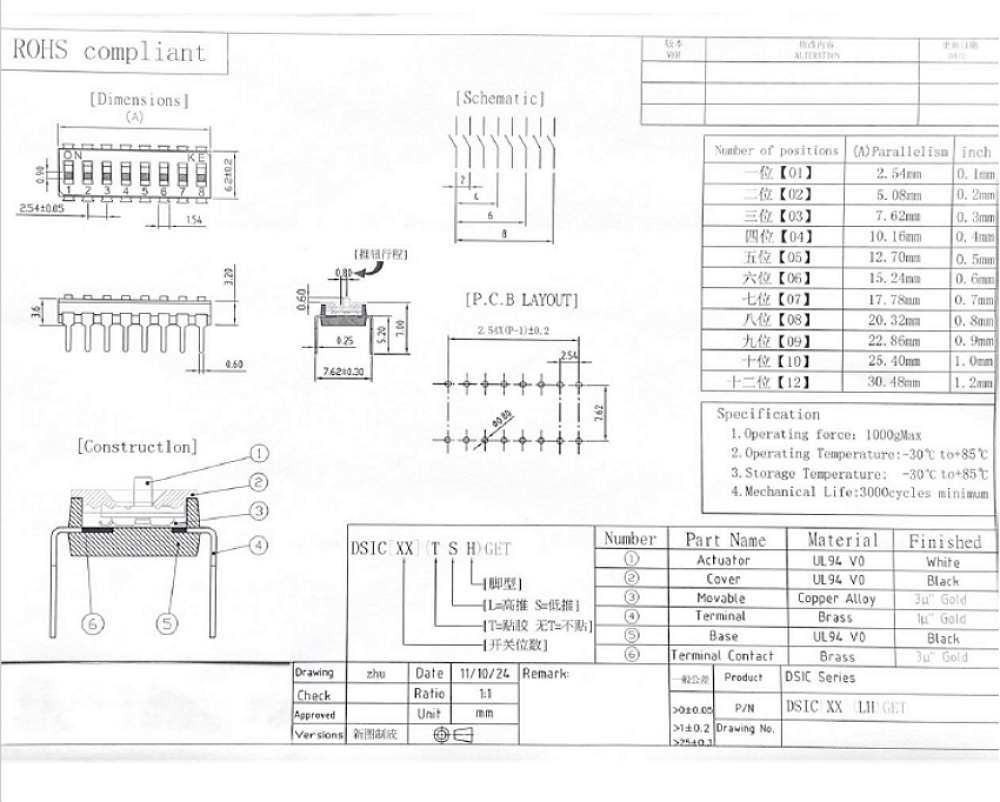

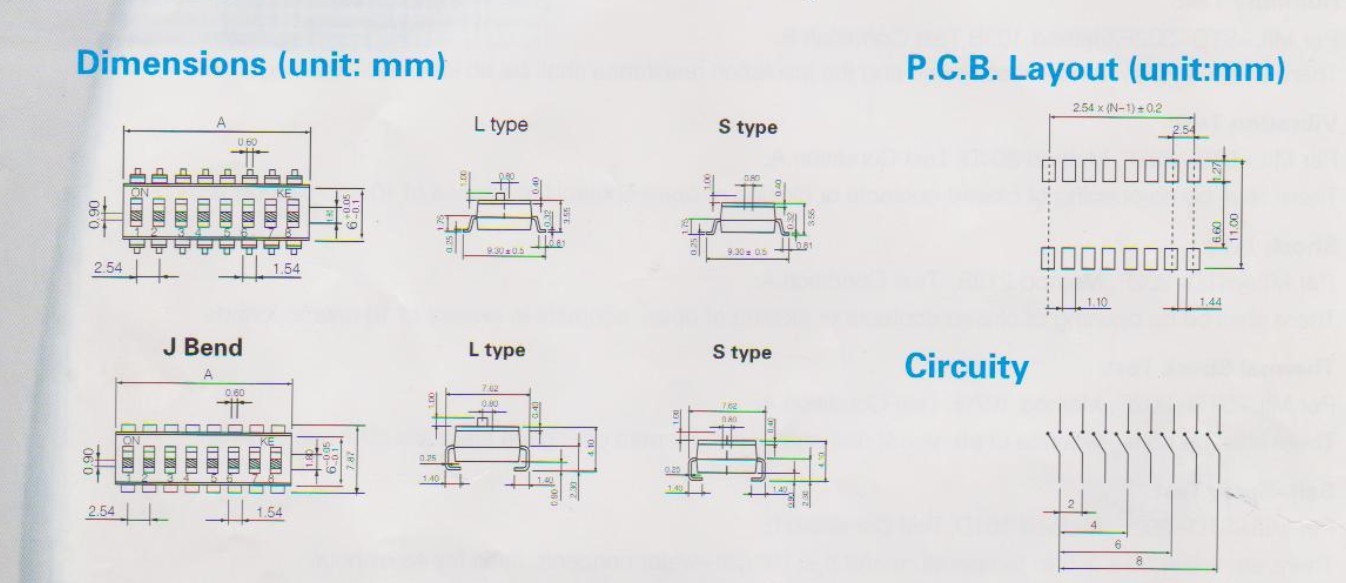

Features: 2.54 mm pitch; Standard gold-clad contacts; attaching electrical resistance temperature film; a high-temperature plastic body design.

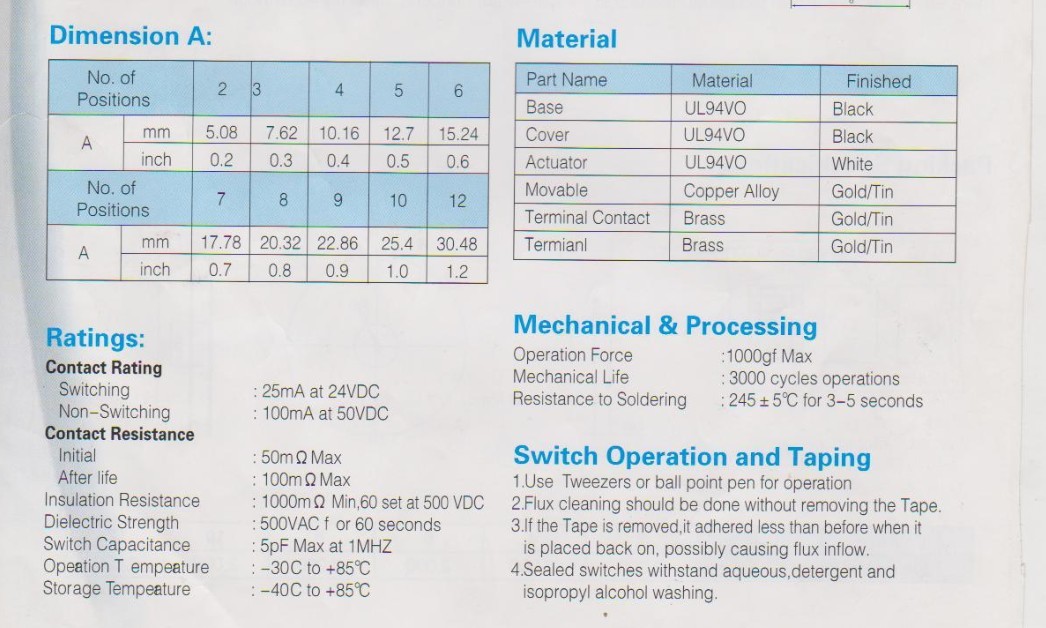

DIP switch product performance:
1 Rated current: Switching current 25mA, 24VDC
Not switching current 100mA, 50VDC

2 Contact resistance: 50 milliohms initial value
Life measured after 100 mOhm

3 Insulation resistance: minimum 500 megohms at 500VDC
4 Withstand voltage: 500VDC / one minute
5 Operating force: maximum force 1000gf
6 Life Test: 3000



DIP switch Material:
1 cover and the body: plastic UL94V-0 rated high temperature material, black
2 Push button: plastic UL94V-0 high temperature material, white
3 fixed contacts and the movable contacts: copper gilt;
4-pin: copper gilt;
5 attached to the film: high temperature film


DIP switch welding:
1 Hand soldering: 30 watts branding: no more than 350 degrees Celsius for three seconds or 270 degrees Celsius within less than 5 seconds.
2 reflow soldering: 265 degrees Celsius within 275 degrees Celsius for 10 seconds, please push the button when soldering and cleaning located in "OFF" position.
