DIPSwitch

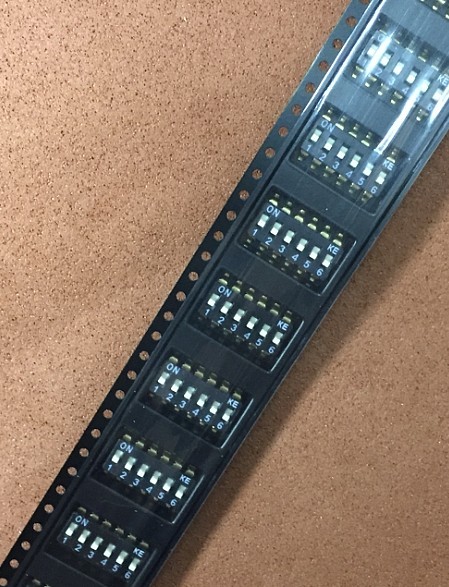

DSIC06LSGER，2.54 mm Pitch 6 PositionSMD Dip Switch

1000pcs/reel
UNit Price:0.196usd/pcs
DC：within 2 years
MOQ:10pcs
Product description: Slide Type SMT SMD Dip Switch, 2.54 mm Pitch 2 Row 12 Pin 6 Position
INQUIRY

Model: DSIC06LSGER
Product Name: 2.54mm pitch DIP switches
Brand : KINGTEK
Features: 2.54 mm pitch; Standard gold-clad contacts; attaching electrical resistance temperature film; a high-temperature plastic body design.

DIP switch product performance:
1 Rated current: Switching current 25mA, 24VDC
Not switching current 100mA, 50VDC

2 Contact resistance: 50 milliohms initial value
Life measured after 100 mOhm

3 Insulation resistance: minimum 500 megohms at 500VDC
4 Withstand voltage: 500VDC / one minute
5 Operating force: maximum force 1000gf
6 Life Test: 3000

DIP switch Material:
1 cover and the body: plastic UL94V-0 rated high temperature material, black
2 Push button: plastic UL94V-0 high temperature material, white
3 fixed contacts and the movable contacts: copper gilt;
4-pin: copper gilt;
5 attached to the film: high temperature film

DIP switch welding:
1 Hand soldering: 30 watts branding: no more than 350 degrees Celsius for three seconds or 270 degrees Celsius within less than 5 seconds.
2 reflow soldering: 265 degrees Celsius within 275 degrees Celsius for 10 seconds, please push the button when soldering and cleaning located in "OFF" position.

KE Brand the new and original stock We also prepare in our warehouse ,Welcome to inquiry !
2.54mmSMD, gold-plated 3u ,high temperature resistant DIP switch 2/3/4/5/6/7/8/9/10/12 high push SMD DIP switch:
DSIC02LSGET
DSIC03LSGER
DSIC04LSGER
DSIC05LSGER
DSIC06LSGER
DSIC07LSGET
DSIC08LSGET
DSIC09LSGET
DSIC10LSGET
DSIC12LSGET

2.54mm In-line gold-plated 3u,high temperature resistant DIP switch 2/3/4/5/6/7/8/9/10/12-position DIP switch:
DSIC02LHGET
DSIC03LHGET
DSIC04LHGET
DSIC05LHGET
DSIC06LHGET
DSIC07LHGET
DSIC08LHGET
DSIC09LHGET
DSIC10LHGET
DSIC12LHGET

2.54mmSMD gold-plated 3u, high temperature resistant DIP switch 2/3/4/5/6/7/8/9/10/12 Position SMD low push film DIP switch:
DSHP02TSGER
DSHP03TSGER
DSHP04TSGER
DSHP05TSGER
DSHP06TSGER
DSHP08TSGER
DSHP10TSGER
