1. Descriptions of RF Receiver IC CMT2210LCW:

The CMT2210LCW is a low power, high performance OOK stand-alone RF receiver for 315/433.92 MHz wireless applications. It is part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers. The CMT2210LCW is a true plug-and-run device, no register configuration and manually-tune is required.

The device operates at either 315 MHz or 433.92 MHz through selecting a 19.7008 MHz or 27.1383 MHz crystal, the data rate is optimized to 1 - 5 kbps which fits well with the low-end data encoder or a MCU based transmitter. The CMT2210LCW operates from 1.8 V to 3.6 V, finely work till the end of most batteries’power. It consumes 3.3 mA current at 315 MHz and 3.8mA at 433.92 MHz while achieving -109 dBm receiving sensitivity.

The SOP8 package is available for easier and lower-cost manufacturing. The CMT2210LCW receiver together with the CMT21xx transmitter enables an ultra-low cost RF link. For NextGenRFTM receivers with more flexibility, the user can use the CMT2210AW.

2. Features of RF Receiver IC CMT2210LCW:

Operation Frequency: 315 / 433.92 MHz
OOK Demodulation
Data Rate: 1.0 - 5.0 kbps
Sensitivity: -109 dBm (3.0 kbps, 0.1％ BER)
Receiver Bandwidth: 330 kHz
Large Signal Handling: 10 dBm
Stand-alone, No External MCU Control Required
No Register Configuration Required
Supply Voltage: 1.8 - 3.6 V
Low Power Consumption:
3.3 mA @ 315 MHz
3.8 mA @ 433.92 MHz
RoHS Compliant

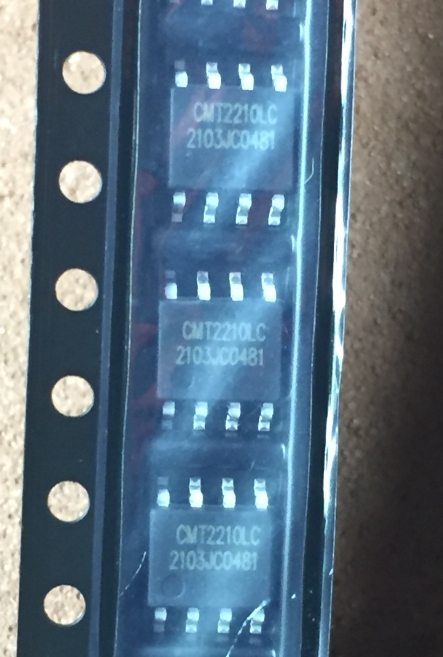

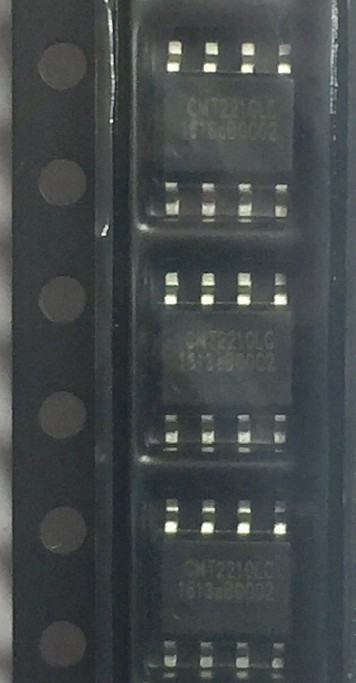

SOP8 Package

3. Applications of RF Receiver IC CMT2210LCW:

Low-Cost Consumer Electronics Applications
Home and Building Automation
Infrared Receiver Replacements
Industrial Monitoring and Controls
Remote Automated Meter Reading
Remote Lighting Control System
Wireless Alarm and Security Systems
Remote Keyless Entry (RKE)
