HPRF

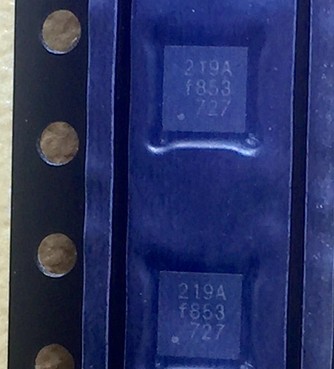

CMT2219A

5000pcs/reel
DC：within 2 years
UNit Price:quote on the day
MOQ：10pcs
Product description: CMT2219A,300-960MHZ OOK/GFSK/FSK RX
INQUIRY

1. Descriptions of RF Receiver IC CMT2219AW:

The CMT2219AW is an ultra low power, high performance, OOK and (G)FSK RF receiver for various 300 to 960 MHz wireless applications. It is part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers. All features can be configured either by off-line EEPROM programming or on-line registers writing.
The configuration file to be written into the registers is generated by the smart RFPDK. The CMT2219AW operates from a supply voltage of 1.8 V to 3.6V, when it is always on, it consumes only 5.8 mA current while achieving -109 dBm receiving sensitivity (FSK @9.6ksps symbol rate), and only 60 nA sleep current for superior battery life.
The device supports packet handling, 32-byte FIFO, Manchester decoding and data de-whitening for the received data processing. Besides the demodulated data and the sync clock, the device can also send out the power-on reset, the system clock, as well as 2 configurable interrupts for the external device. CMT2219AW receiver together with the CMT211xAW transmitter enables a powerfulRF link.

2. Features of RF Receiver IC CMT2219AW:

Optional Configuration Schemes

-On-Line Configuration by Registers Writing

-Off-Line Configuration by EEPROM Programming

Frequency Range: 300 to 960 MHz

Support OOK, FSK and GFSK Demodulation

Symbol Rate: 1.2 to 100 ksps

Sensitivity: -109 dBm at 9.6 ksps, 0.1% BER, FRF = 868 MHz

4-wire SPI Interface

Direct, Buffer and Packet Mode Supported

Configurable Data Handler and 32-Byte FIFO

Manchester Decoding and Data De-Whitening

Supply Voltage: 1.8 to 3.6 V

Low Power Consumption: 5.8 mA

Low Sleep Current

-60 nA when Sleep Timer Off

-440 nA when Sleep Timer On

RoHS Compliant

16-pin QFN 3x3 Package

3. Applications of RF Receiver IC CMT2219AW:

Low-Cost Consumer Electronics Applications

Home and Building Automation

Infrared Receiver Replacements

Industrial Monitoring and Controls

Remote Lighting Control

Remote Automated Meter Reading

Wireless Alarm and Security Systems

Remote Keyless Entry (RKE)

CMT2219 files link：download files
CMT2219 Module-RFM219 files link：download files
