HPRF

CMT2210LB

2500pcs/reel
DC：within 2 years
UNit Price:quote on the day
MOQ:200pcs

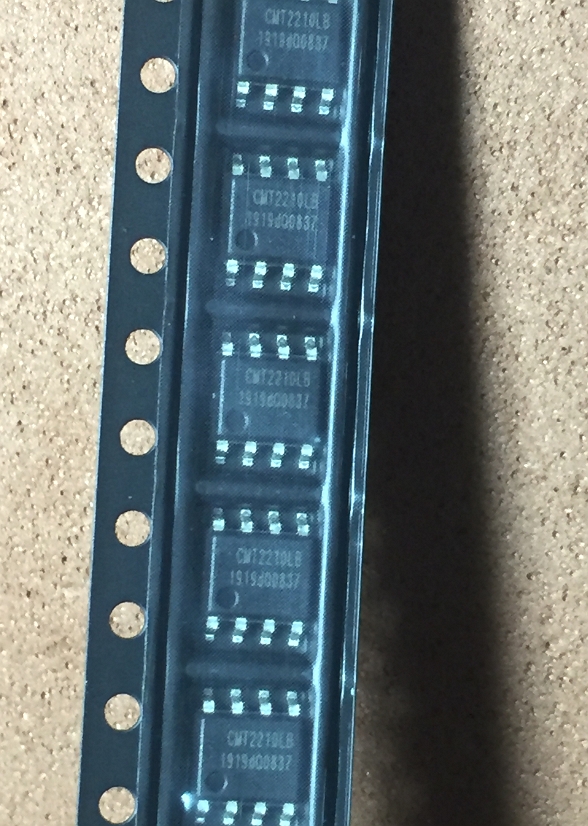

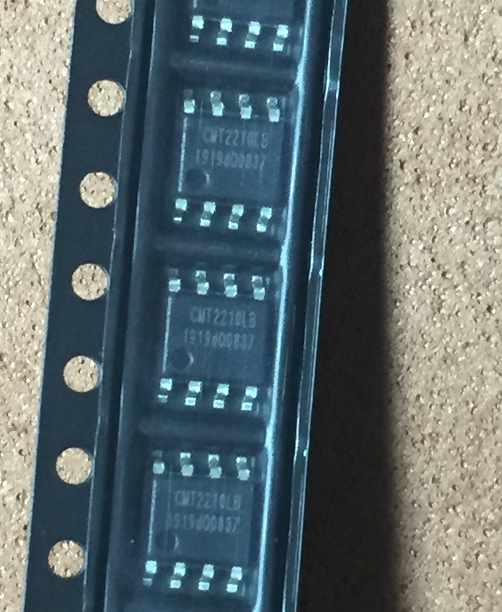

Product description: CMT2210LB，SOP8，300-480MHZ OOK Standalone RF Receiver
INQUIRY

CMT2210LB，SOP8，300-480MHZ OOK Standalone RF Receiver

Features

Embedded EEPROM
Frequency Range 300 to 480 MHz
Data Rate: 0.1 to 40 kbps
Sensitivity: -113 dBm at 1 kbps, 0.1% BER
Configurable Receiver Bandwidth: 50 to 330 kHz
3-wire SPI Interface for EEPROM Programming
Stand-Alone, No External MCU Control Required
Configurable Duty-Cycle Operation Mode
Rx Active and System Clock Output
Supply Voltage: 1.8 to 3.6 V
Low Power Consumption: 3.8 mA
Low Sleep Current
60 nA when Sleep Timer Off
440 nA when Sleep Timer On
RoHS Compliant
SOP8 Packages

Descriptions
The CMT221xB/LB device is an ultra-low power, high performance, low-cost OOK stand-alone RF receiver for various 300 to 920 MHz wireless applications. It is part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers. An embedded EEPROM allows the frequency, data rate and other features to be programmed into the device using the CMOSTEK USB Programmer and RFPDK. Alternatively, in stock products of 433.92 / 868 MHz is available for immediate demands without the need of EEPROM programming. When the CMT221xB/LB is always on, it consumes only 3.8 mA current while achieving -113 dBm receiving sensitivity. It consumes even less power when working in duty-cycle operation mode via the built-in sleep timer. The CMT221xB/LB receiver together with the
CMT211x transmitter enables an ultra-low cost RF link.
